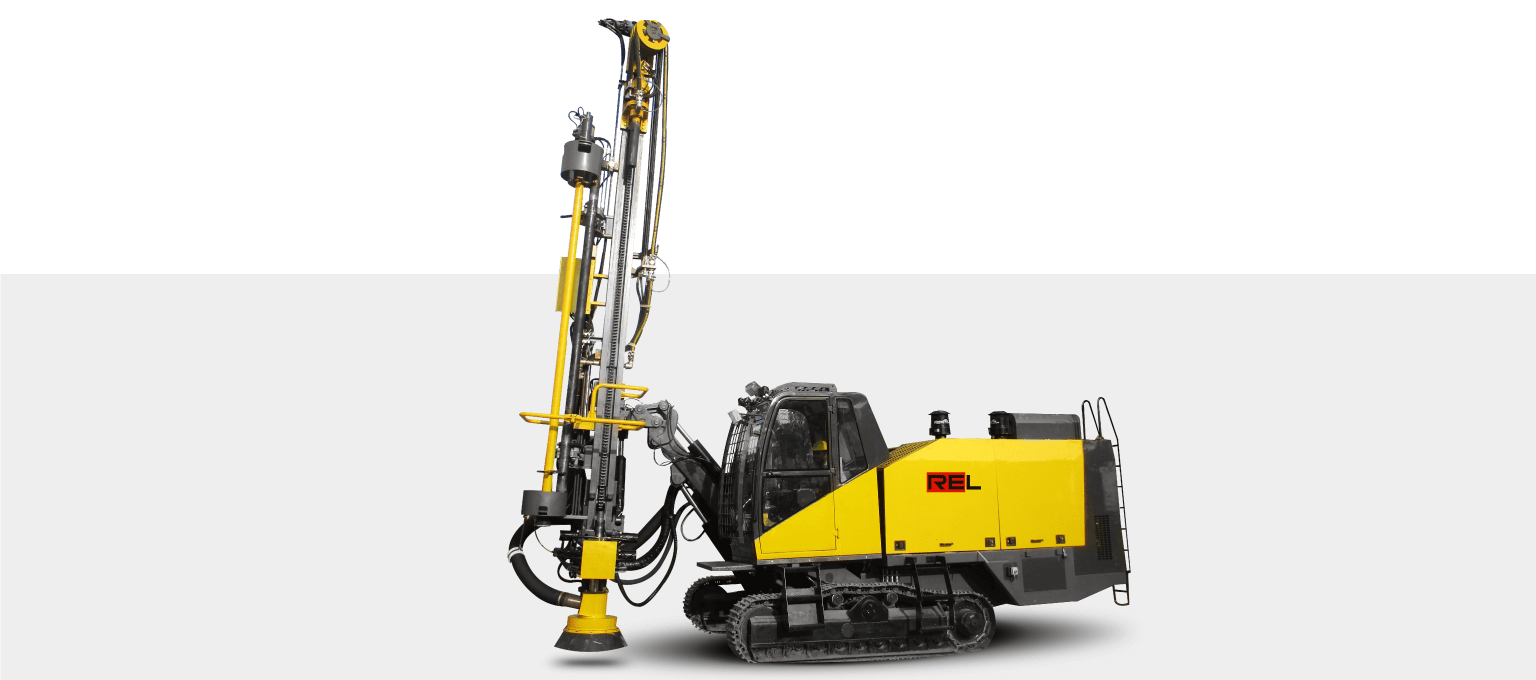

C615 H
The C615 Jack-less DTH Drilling Rig is designed to drill holes of 4 inch (101.6mm) to 6 inches (152.4mm) up to a maximum depth of 52.5 ft (16m). Built to drill in limestone quarries, aggregate mines and various construction applications.
The 500 CFM – 200 Psi (14.17 m3/min -13.8 bar) compressor develops the necessary bailing velocity for efficient clean down the hole drilling.
The C615H is optimally designed for higher productivity and efficient drilling in all conditions to deliver maximum results.
Angle hole drilling from 0 to 90 Degrees and improved horizontal, vertical coverage area provides better pre-split, production drilling capabilities with higher spacing burden range..
Engine – Hydraulic bay is designed for easy access to improve serviceability.
The Compact size of the C615 helps for easy transportation and manoeuvrability in tight corners.
| SPECIFICATION | IMPERIAL | METRIC |
| Drilling Diameter | 4 to 6 inch | 102 to 152 mm |
| Pipe Size | 2-7/8 to 4-1/2 inch | 73 to 114.3 mm |
| SP – Single Pass depth | ||
| Mast | 13 ft 2 inch | 4 m |
| MP – Multi Pass depth | ||
| Mast 3 POD | 52 ft 6 inch | 16 m |
| Compressor | 500 cfm – 200 psi | 14.17 m3/min -13.8 bar |
| Pull Down Capacity | 7720 lbs | 3500 Kg |
| Pull Up Capacity | 7720 lbs | 3500 Kg |
| Feed Rate Rapid | 77 ft/min | 23.5 m/min |
| Rotary Torque | 31000 in-lbs | 3502 Nm |
| Rotary Speed | 0 to 90 rpm | |
| Engine / Motor | 260 HP | 194 kW |
| Undercarriage | Triple Grouser with 330mm width & sufficient rollers | |
| Ground Bearing pressure | 14.5 psi | 100 kPa |
| Speed in slope / Plain | 0.6 / 1.6 mph | 1.1 / 2.7 km/hr |
