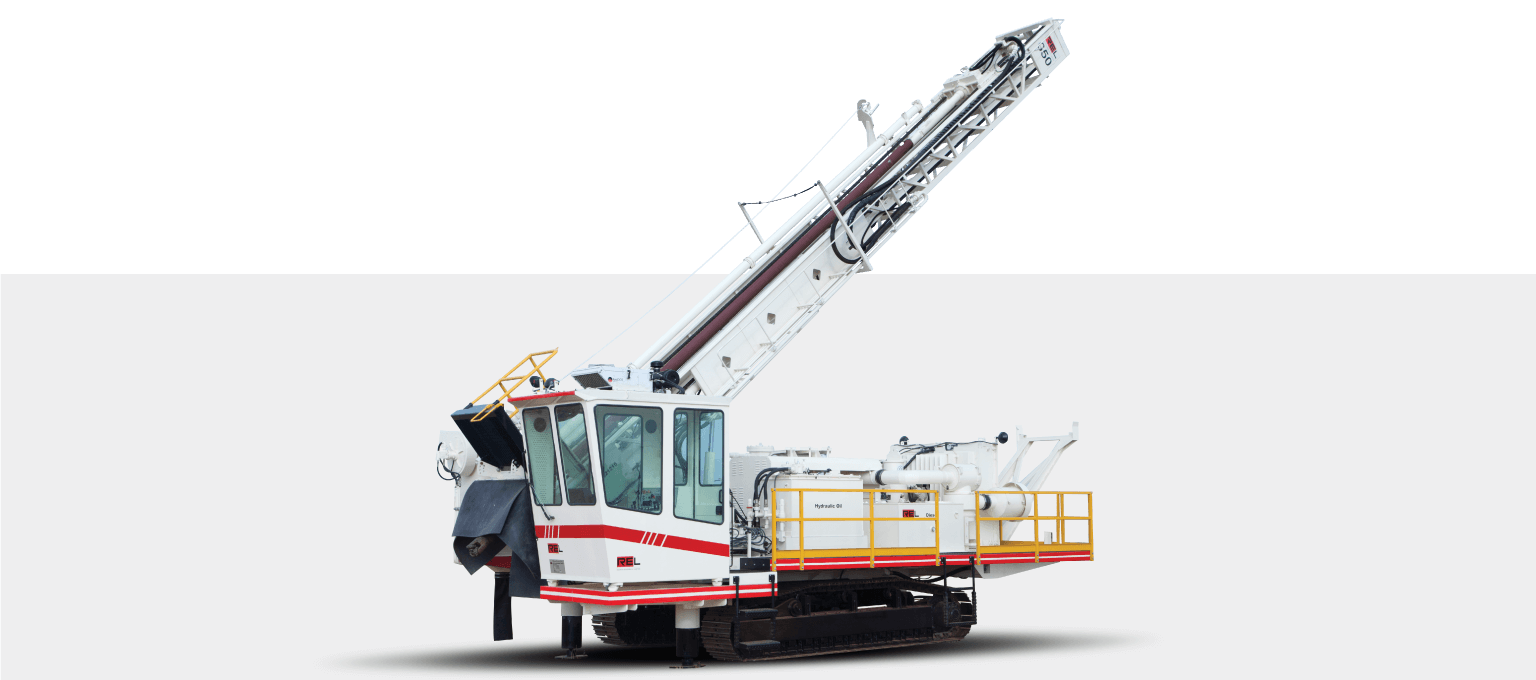

C650 H
- The REL C650H Down-the-Hole Blast Hole drill comes from the family of the C650 Series. Designed to drill clean holes of 6-1/2 inch (165mm) to 8 inch (203mm) diameter to a maximum depth of 175 ft (53.3m) using 25 ft (7.6m) long rods and 120 ft (36.5m) using 30 ft (9m) long rods.
- The Mast is electrically welded and made of square and rectangular steel tube mast of robust construction to withstand adverse drilling conditions
- Cabin of the REL 650 provides maximum comfort, usability conforming to the regulatory standards.
- The layout of the C650 Drill is designed for better serviceability with easy access to all daily check zones and regular change interval components
- Small in size big on performance – The C650 Series drills commands with the smallest footprint in its class providing it with better Spacing burden ratios and making it easier to manoeuvre in tight corners
- Its Maximum height of 4.4 Meters makes it easy for transportation along with the mast
- The REL C650H is available with three Autonomous Package
- Basic One touch
- Fully Autonomous
- Remotely Operated Fully Autonomous Packages
| SPECIFICATION | Imperial | Metric |
| Drilling Diameter | 6-1/2 to 8 inch | 165 to 203 mm |
| Pipe Size | 5 inch | 127 mm |
| SP – Single Pass depth | ||
| Standard Mast | 25 ft | 7.6 m |
| Tall Mast | 30 ft | 9 m |
| MP – Multi Pass depth | ||
| Standard Mast (Three pod) | 100 ft | 30.5 m |
| Standard Mast (Six pod) | 175 ft | 53.3 m |
| Tall Mast (Single pod) | 60 ft | 18.3 m |
| Tall Mast (Three pod) | 120 ft | 36.3 m |
| Compressor | 900/1100 cfm – 350 psi | 25.5/31.2 m3/min -24.1 bar |
| Pull Down Capacity | 30000 lbs | 13600 Kg |
| Pull Up Capacity | 22000 lbs | 9980 Kg |
| Feed Rate Rapid | 55 ft/min | 16.8 m/min |
| Rotary Torque | 40000 in-lbs | 4520 Nm |
| Rotary Speed | 0 – 90 rpm | |
| Engine | 530 / 554 HP | 395 / 413 kW |
| Undercarriage | Triple Grouser with 600mm width & sufficient rollers | |
| Ground Bearing pressure | 11.6 / 13.4 psi | 80 / 93 kPa |
| Speed in slope / Plain | 1.2 to 1.5 / 2.4 to 3.0 km/hr | 0.7 to 0.9 / 1.5 to 1.86 mph |
