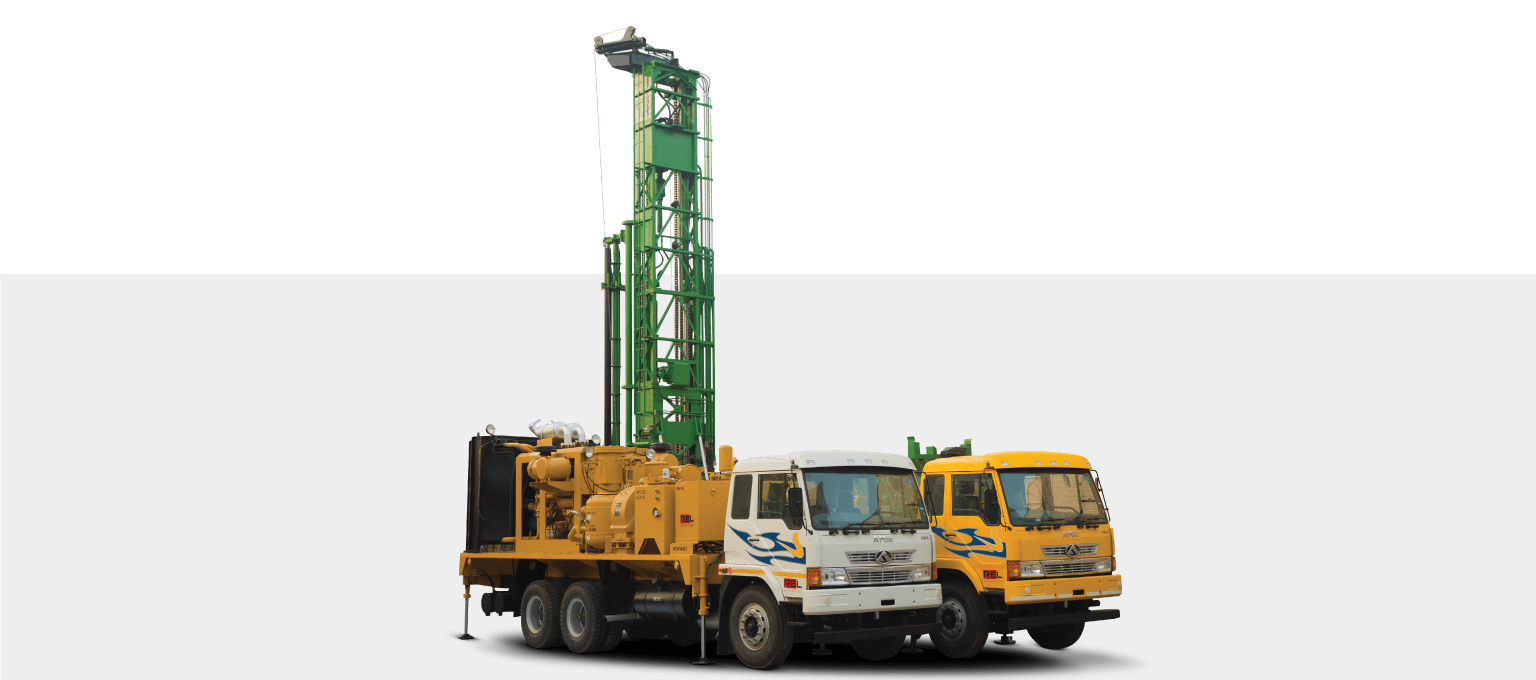

T 700
REL is equipped to manufacture drills to perform at the highest of altitudes, lowest of temperatures facing the worst conditions. T 700 assures longevity through the sturdy structure that is put in place with high quality materials, carefully weld to give strength and power.
Operator comfort and safety is also of utmost importance to us. The drill provides enough work space in the cabin and provides improved visibility for easy handling. (Technical specifications missing)
REL also offers dual rotary drill rigs with simultaneous casing capability (from 12” to 40”) for drilling in fractured / unconsolidated formations in association with world renowned Foremost, Canada.
REL has attained capability to offer top-drive and table-drive drill rigs suitable for hard rock, unconsolidated, alluvial formations (with depth capability beyond 1000 mtrs) in association with world renowned GEFCO, USA.
| SPECIFICATION | Metric | Imperial |
| Drilling Capacity | ||
| Hole Size (DTH / Rotary) | 203 to 311 mm | 8” to 12 1/4” |
| Drilling Depth | 500 m | 1650 ft |
| Mounting | Two truck carriers (6 x 4) | |
| Mast | ||
| Construction | Heavy duty structural steel lattice box type. | |
| Drill Pipe Length | 6.10 m | 20 ft |
| Feed | ||
| Feed System | Twin chain with twin cylinder pull down | |
| Pull down | 14,970 Kg | 33,000 lbs |
| Pull Up | 31,760 Kg | 70,000 lbs |
| Rotary Head | ||
| System | Hydraulic motor thru gearbox | |
| Torque | 14,900 Nm | 1,32,000 in-lbs |
| Speed | 0 – 100 RPM | |
| Air Compressor | (on 2nd truck) | |
| Type | Two stage oil flooded screw type | |
| Capacity | 32.5 m³/min | 1150 cfm |
| Pressure | 34.5 bar | 500 psi |
| Prime Mover | Deck mounted diesel engine | |
| Leveling Jacks | ||
| Rear End | Two Nos. | |
| Front End | Two Nos. | |
| Water Injection | Hyd. motor driven | |
| Capacity | 30 / 60 LPM | 8 / 16 US GPM |
| Drill Pipe handling | ||
| Pipe Loader | Three of six pipes | |
| Pipe dia | 114 mm | 4-1/2 inch |
| Pipe Length | 6.10 m | 20 ft |
| Controls | Compact control console grouping the controls within easy reach of operator. | |
| Optional Equipment | Mud Pump on (2nd truck) / Hydraulic Welder / Casing Winch etc. | |
