C650-DI|DM|DH
Rotary Drilling Series
Diameter : 6-1/4” (159mm) to 9” (229mm)
Single pass Depth : 30 ft (9m) & 40 ft (12m)
Multi pass Depth : 120 ft (36.5m) & 160 ft (48m)
C750
Rotary Drilling Series
Diameter : 9” (229mm) to 11” (279mm)
Single pass Depth : 35 ft (10.6m) & 55 ft (16.7m)
Multi pass Depth : 175 ft (53m) & 220 ft (67m)
C850
Rotary Drilling Series
Diameter : 12-1/4” (311mm) to 13-3/4” (349mm)
Single pass Depth : 50 ft (15.2m)
Multi pass Depth : 200 ft (61m)
C615 H
Diameter : 4” (101.6mm) to 6” (152.4mm)
Single pass depth : 13.12 ft (4m)
Multi pass depth : 52.5 ft (16m)
APPLICATION :
Mining, Quarrying & Construction
The C615 Jack-less DTH Drilling Rig is designed to drill holes of 4 inch (101.6mm) to 6 inches (152.4mm) up to a maximum depth of 52.5 ft (16m). Built to drill in limestone quarries, aggregate mines and various construction applications.
The 500 CFM – 200 Psi (14.17 m3/min -13.8 bar) compressor develops the necessary bailing velocity for efficient clean down the hole drilling.
C620H
Diameter : 4-1/2” (114.3mm) to 6-1/2” (165.1mm)
Single pass depth : 19.68 ft (6m)
Multi pass depth : 118 ft (36m)
APPLICATION :
Mining, Quarrying & Construction
C625H
Diameter : 4-1/2” (114.3mm) to 8” (203.2mm)
Single pass depth : 19.68 ft (6m)
Multi pass depth : 118 ft (36m)
APPLICATION :
Mining, Quarrying & Construction
The C625H Jack-less Down the hole drill is capable of drilling clean hole of the diameter of 4 1/2 -8 inch. The sturdy mast of the C625H delivers a single pass depth of 6 meters and a maximum depth of 30 meters.
The 900 CFM – 350 psi Compressor develops the necessary flushing velocity, improving drilling rate. Purpose-built for hard strata conditions the C625H, DTH drilling machine is the right choice for Metal, Limestone, Dolomite and Aggregate open cast quarries and mines.

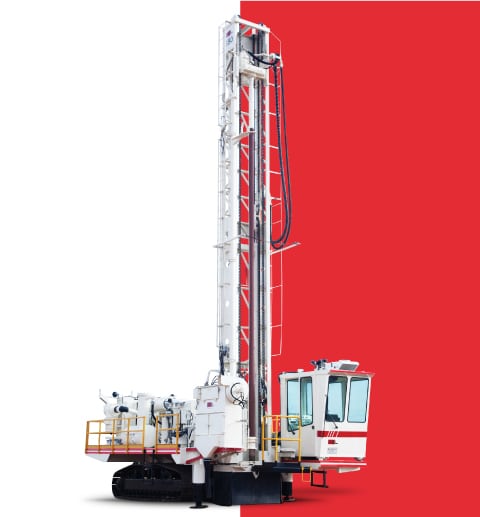

C650 H
Diameter :6-1/2” (165.1mm) to 8” (203.2mm)
APPLICATION :
Mining, Quarrying & Construction
The REL C650H Down-the-Hole Blast Hole drill comes from the family of the C650 Series. Designed to drill clean holes of 6-1/2 inch (165mm) to 8 inch (203mm) diameter to a maximum depth of 175 ft (53.3m) using 25 ft (7.6m) long rods and 120 ft (36.5m) using 30 ft (9m) long rods.
